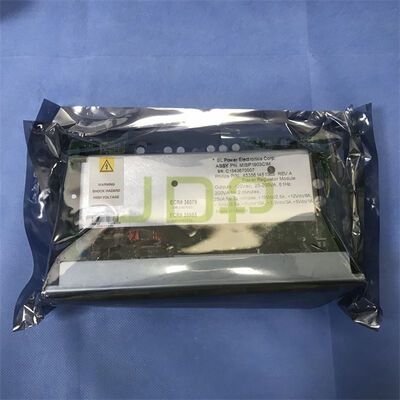

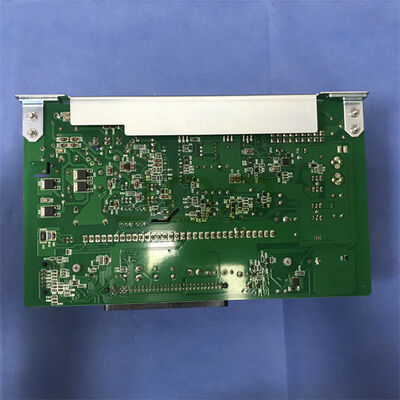

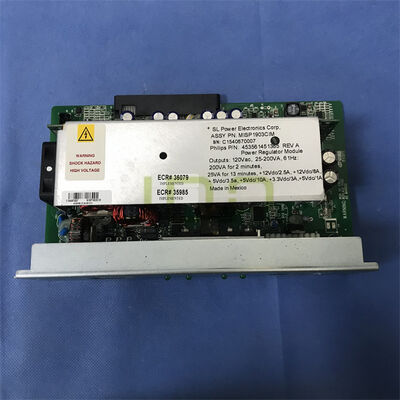

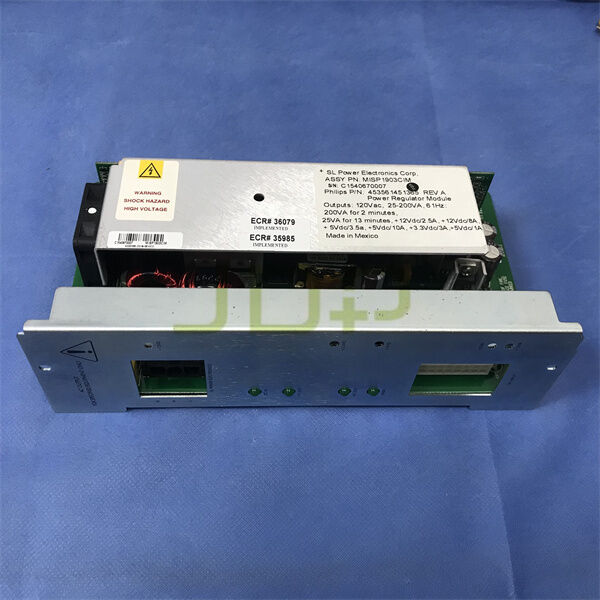

Power Regulator Module MISP1903CIM For Diagnostic Ultrasound Systems

Power Regulator Module MISP1903CIM For Diagnostic Ultrasound Systems

► Brief Description

The MISP1903CIM serves as the central power management and voltage regulation hub within the ultrasound architecture. Rather than generating raw power from the AC wall outlet, this module takes the primary DC output from the main AC-DC power supply unit and refines it. It converts, filters, and distributes multiple channels of highly stable, precise voltages required by sensitive ultrasound frontend and backend components.

►Feature

• Multi-Channel Voltage Regulation
• High-Voltage (HV) Management for Transducers
• Advanced Signal Filtering & Noise Suppression
• System Safety & Circuit Protection

► Specification

►FAQ

Can a faulty MISP1903CIM board cause imaging artifacts?

A: Yes. If the filtering capacitors on this regulator board degrade or leak over time, they lose their ability to smooth out voltage ripples. This introduces electrical noise into the analog frontend (transducer pulsing circuitry), resulting in diagonal lines, static, or snow-like artifacts on the B-mode or Doppler display.

► More service

Ultrasound probe spare parts:

2D/3D/4D probe parts as below: Lens (dome), cable, housing (case), strain relief (cover), connector and crystal are provided
