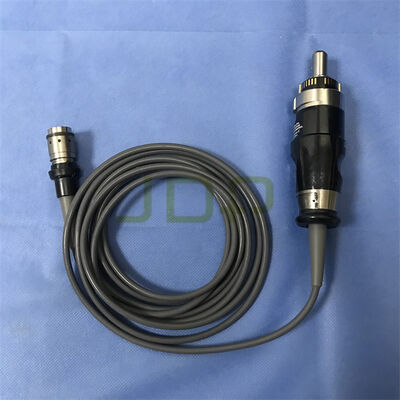

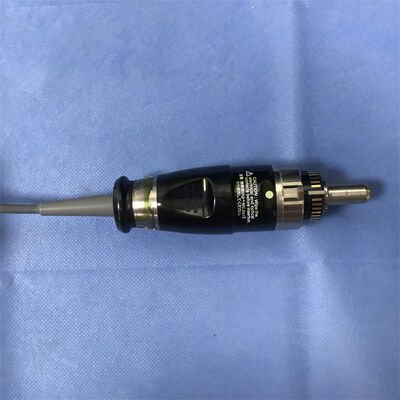

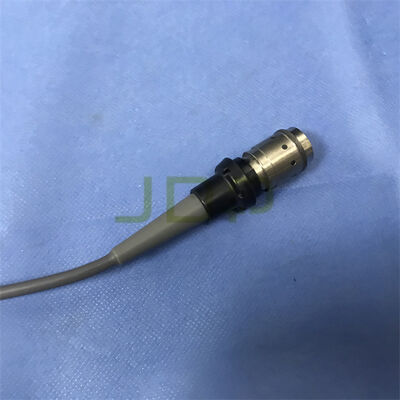

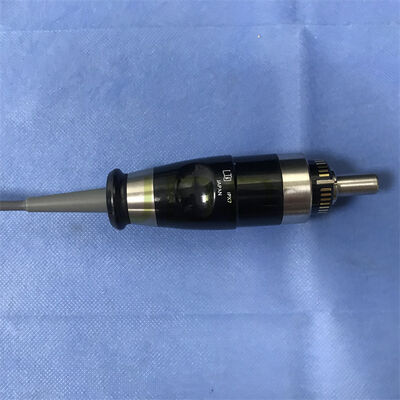

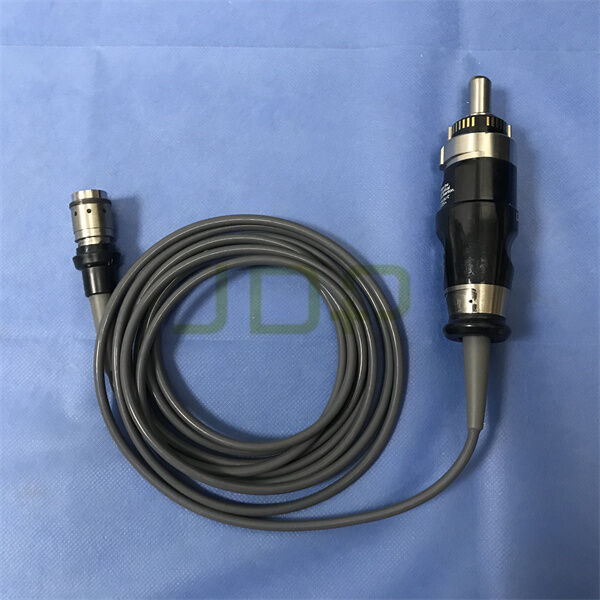

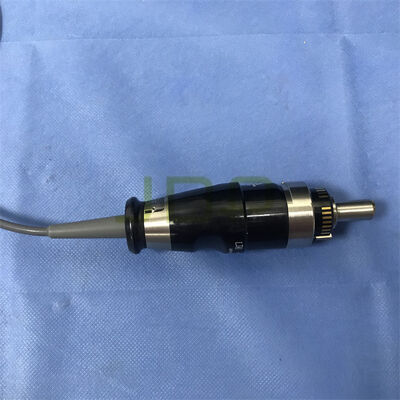

Cable Assembly For Olympus CH-S400-XZ-EB Camera Head

Cable Assembly For Olympus CH-S400-XZ-EB Camera Head

► Brief Description
The integrated cable for the Olympus VISERA 4K UHD CH-S400-XZ-EB Camera Head is a highly engineered medical component. Because 4K ultra-high-definition imaging generates massive bandwidth demands, this cable utilizes specialized optical-fiber technology rather than traditional copper wires to ensure lossless, real-time data transmission.The CH-S400-XZ-EB Cable Assembly is the vital lifeline connecting the 4K camera head to the Olympus OTV-S400 video processor.

►Features

• Ultra-High-Speed 4K Transmission (Zero Latency)
• Total Electromagnetic Interference (EMI) Immunity
• Lightweight & Ergonomic Handling
• Support for Advanced Visual Technologies

► Specification

► FAQ

The screen is flickering, showing static/noise, or blacking out during surgery. Is it a cable issue?

A: Most likely, yes. Fiber breakage or dirty connectors are the main causes. Follow these steps:

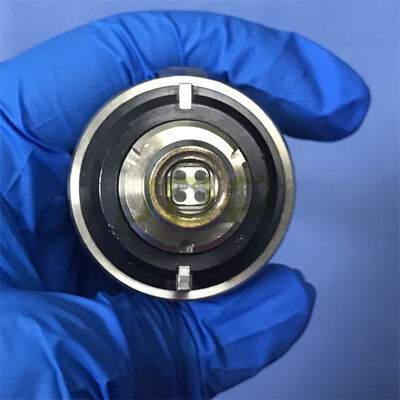

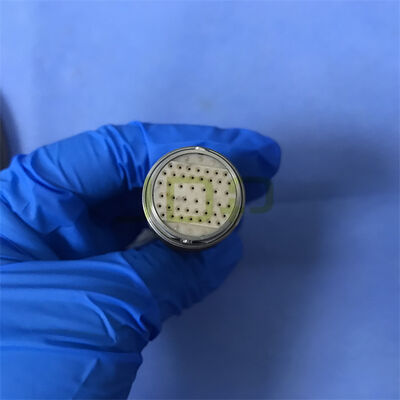

• Check the plug: Unplug the connector from the OTV-S400 processor. Clean the gold contact pins and the optical ports with a lint-free cloth and isopropyl alcohol. Ensure it is completely dry before plugging it back in.
• The "Wiggle" Test: Turn on the system and gently bend/wiggle different sections of the cable—specifically near the camera head connection and the connector plug. If the image flickers or cuts out when wiggled, the optical fibers inside are fractured, and the cable assembly needs repair.

► More service

Spare parts for Wolf camera head, such as CCD, cable, cover, sheath/strain relief, etc.
Camera system brand by OLYMPUS, WOLF, STORZ, Stryker, Smith&Nephew, ScanMed, etc.

Main models of camera head:
5502, 5506, 5507, 5509, 5512, 5516, 5525, 5550, etc by Wolf;
OTV-S4, OTV-S5, OTV-SX2, OTV-SC, OTV-S6, OTV-S7, CV-165, etc by Olympus;
22201020, 20242020, 22202022, 20212020, etc by Storz Image 1 HUB HD;
888i, 988i, 1088/1088HD, 1188/1188HD, 1288/1288HD, 1488/1488HD, 1588/1588HD, 1688/1688HD, etc by Stryker;
460P, 560P, ED-3, 325Z, 350, etc by Smith&Nephew.
